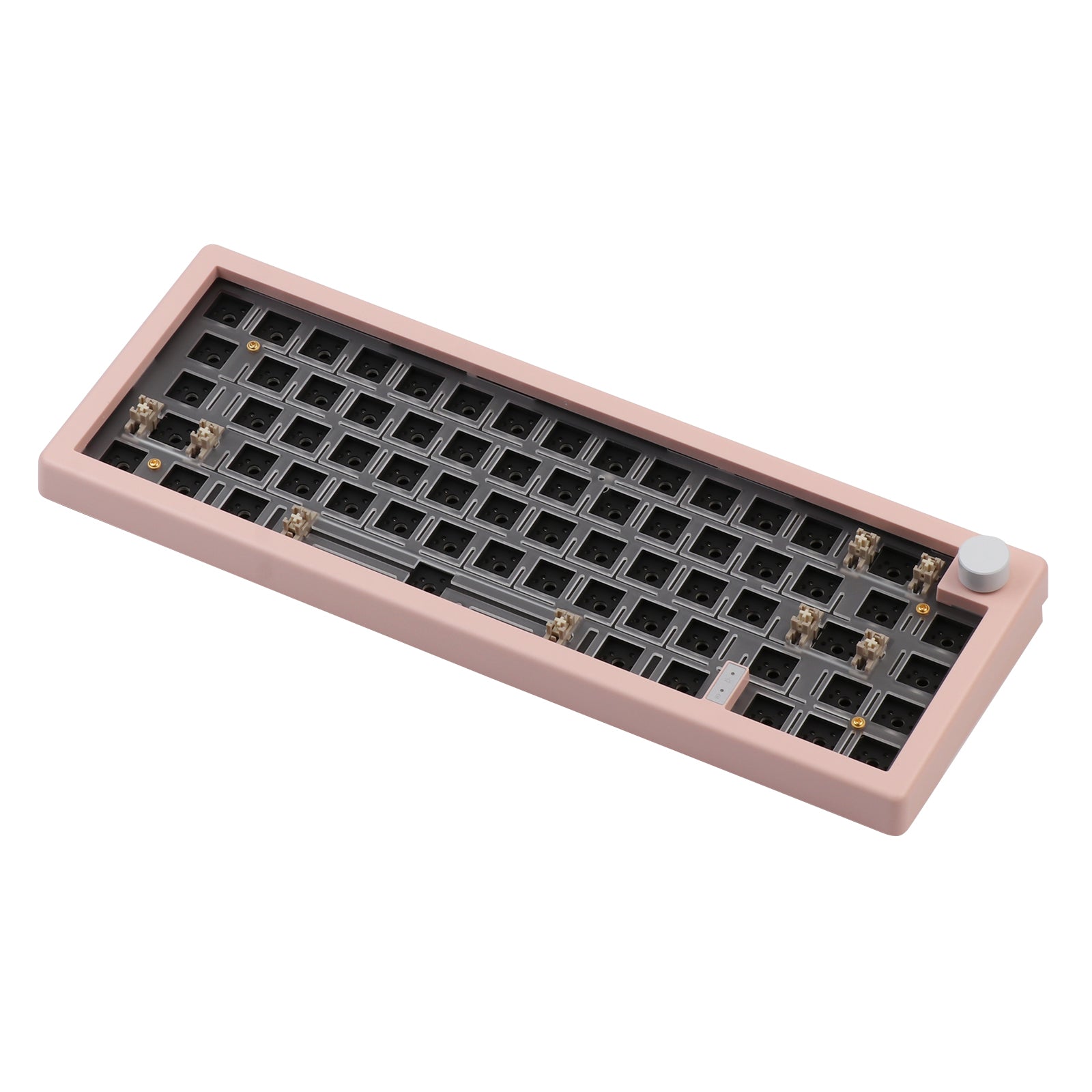

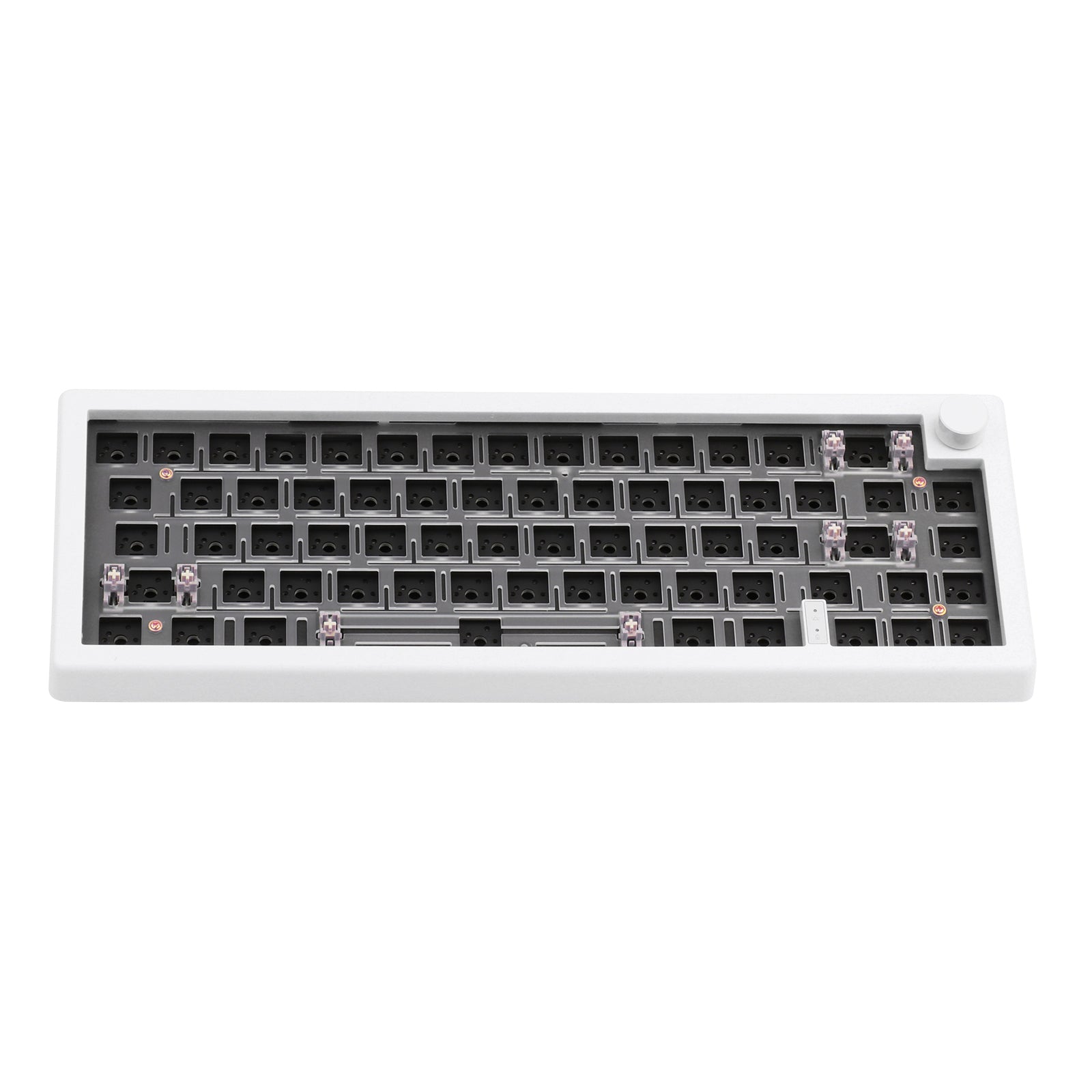

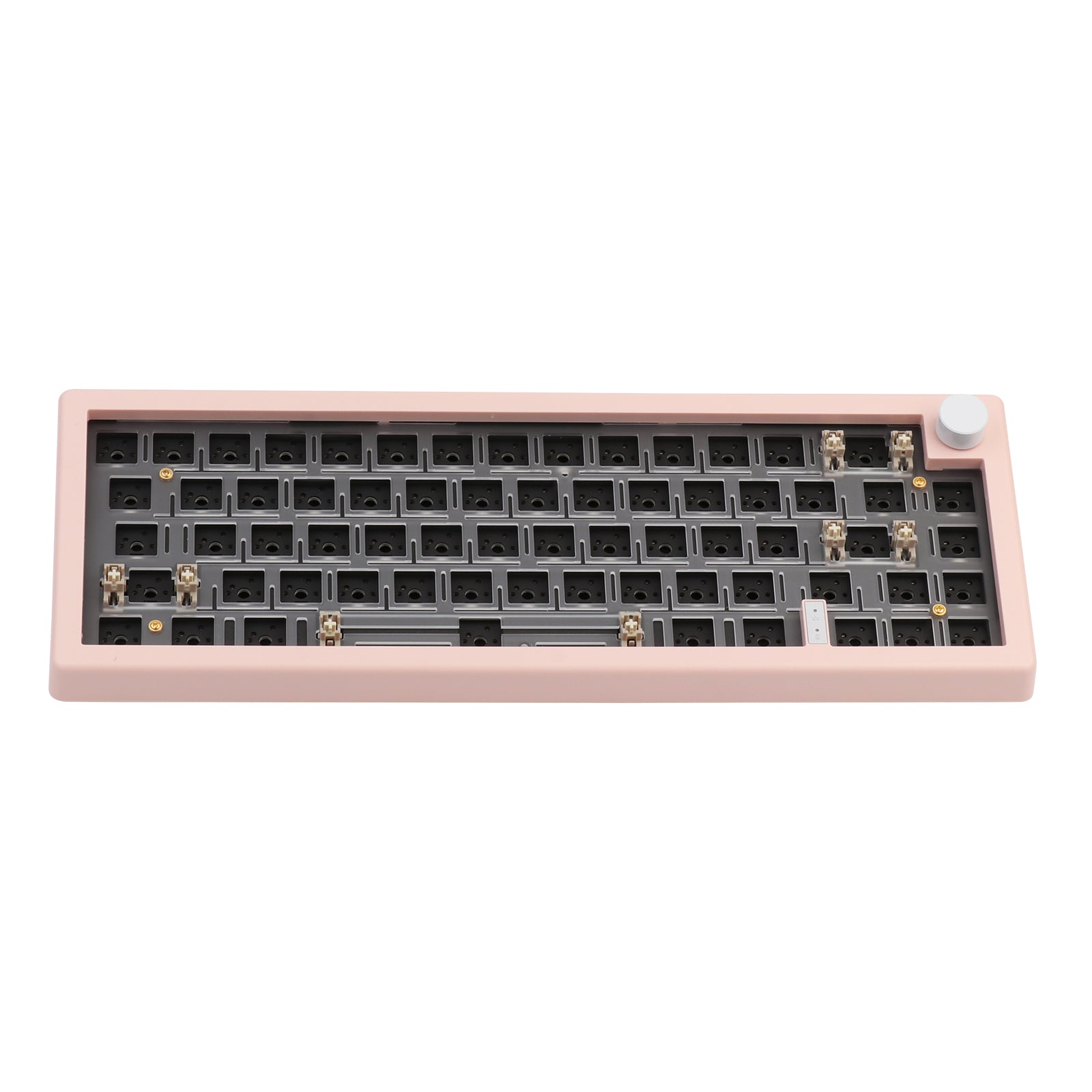

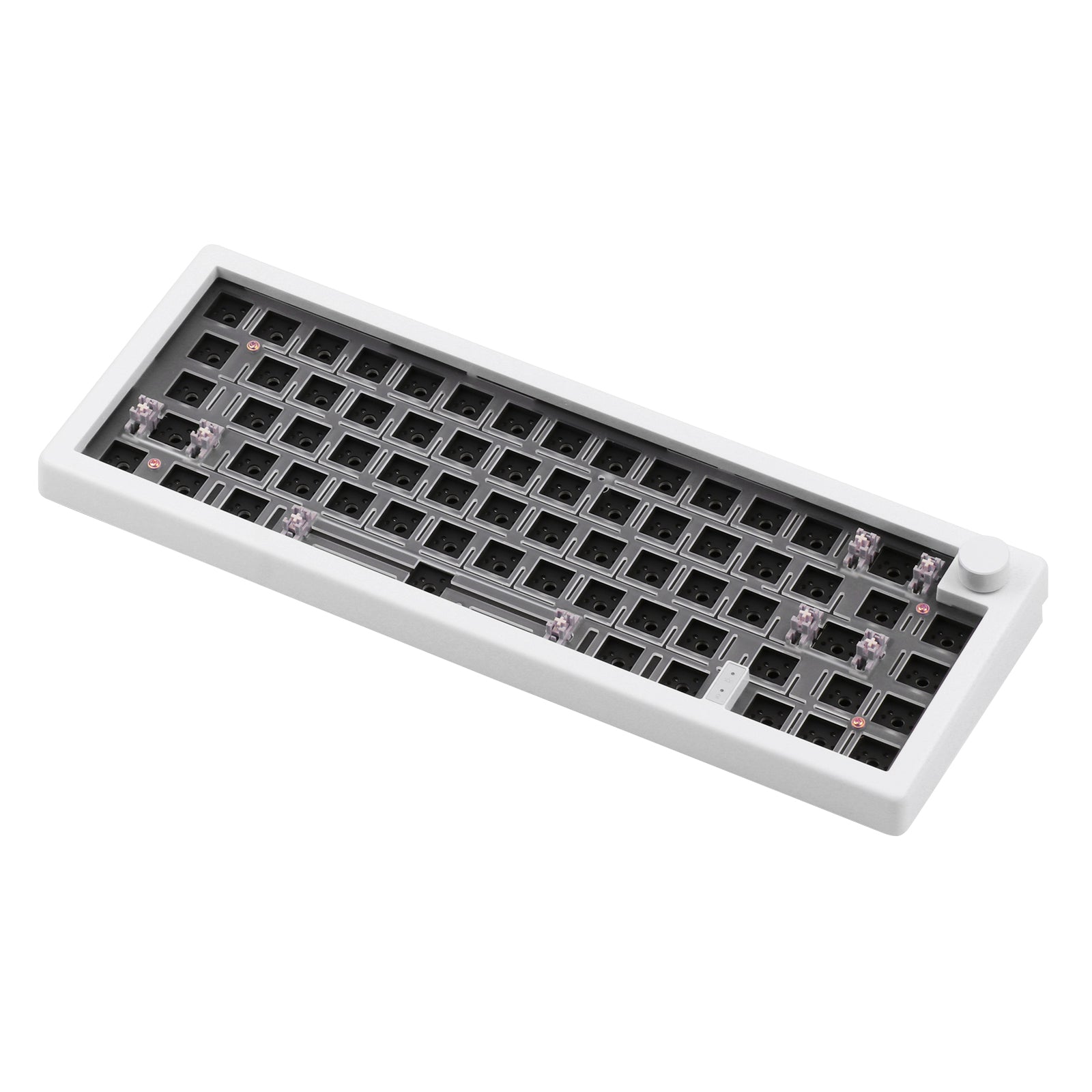

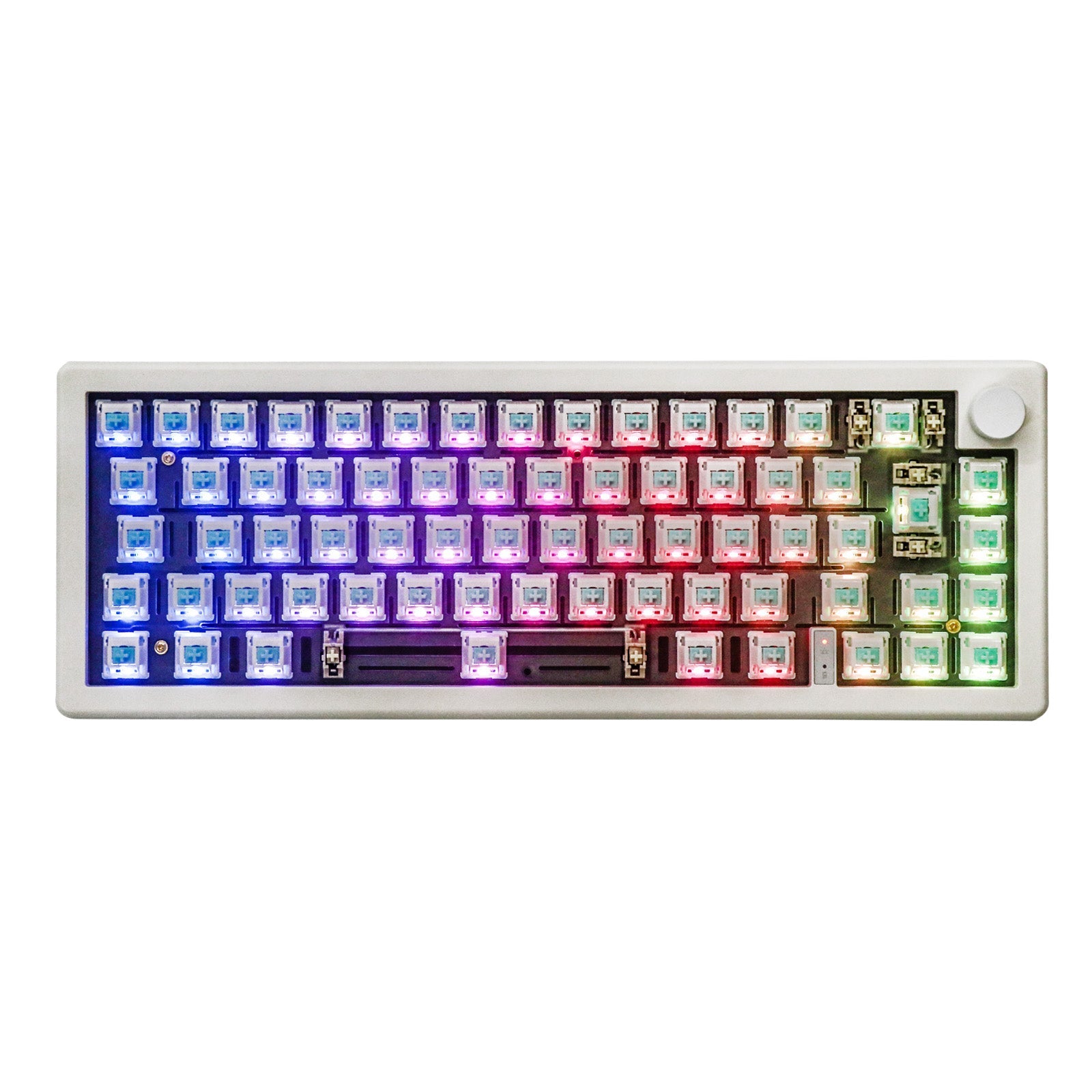

EPOMAKER EK68 VIA Kit

67 Keys Wireless 2.4Ghz/Bluetooth 5.0/USB-C Wired Gaming Keyboard DIY Kit

  • 65% Gaming DIY Kit & VIA Programming
  • Gasket Mount - The Desired Structure
  • Three Modes of Connectivity: Bluetooth 5.0 & 2.4GHz & Type-C Cable
  • Hot Swappable & South-facing LEDs
  • Rotary Knob for Media Control & Refinedly Tuned Stabilizers
Pink
White
Regular price $75.99
Sale price $75.99 Regular price

Free standard shipping to most countries

Enjoy free shipping to most countries*. Please refer to our shipping FAQ to see if you apply.

15-Day Return Policy

15-day no-reason free return and exchange policy, you have ample time to try out your new product and decide if it's right for you.

PRODUCT DESCRIPTION

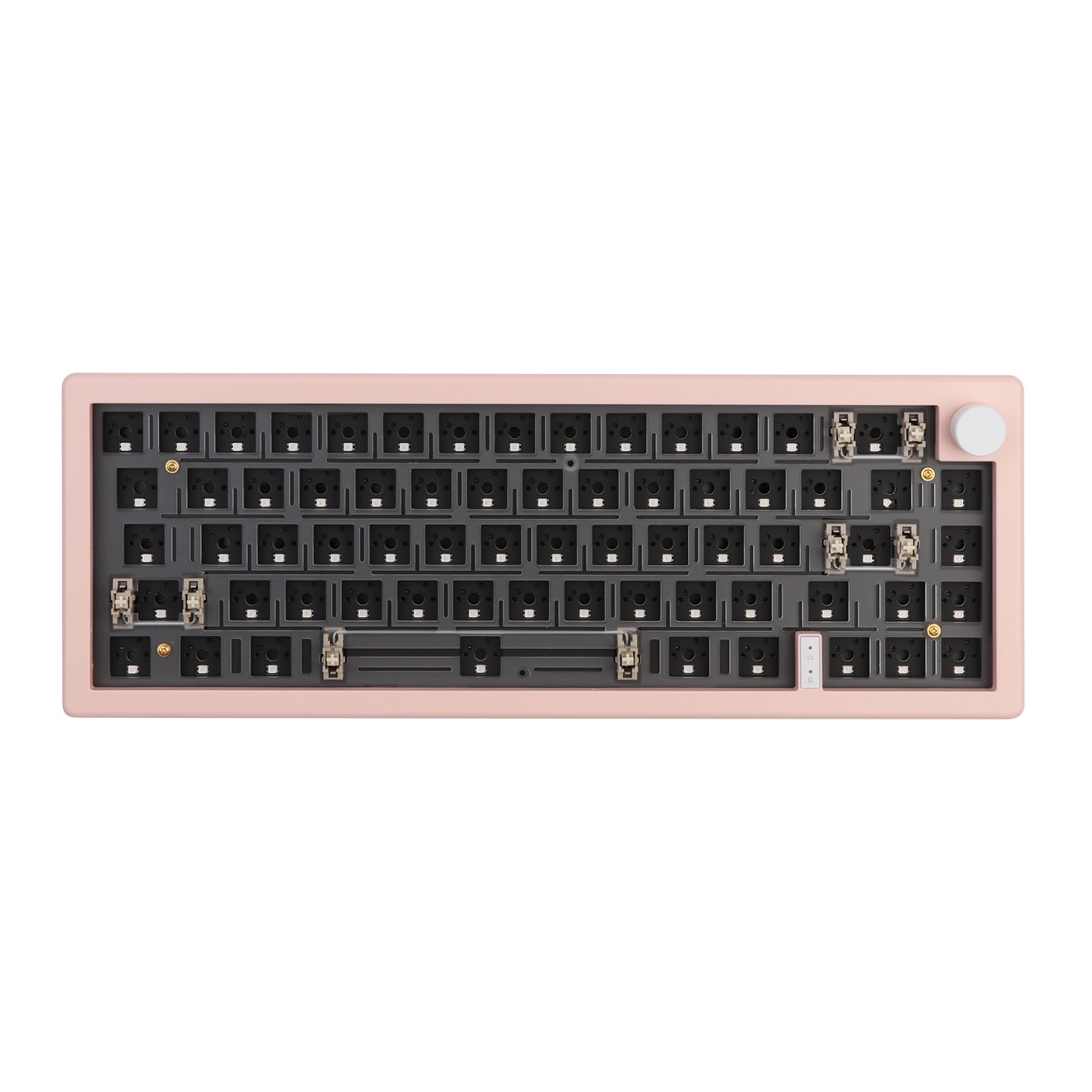

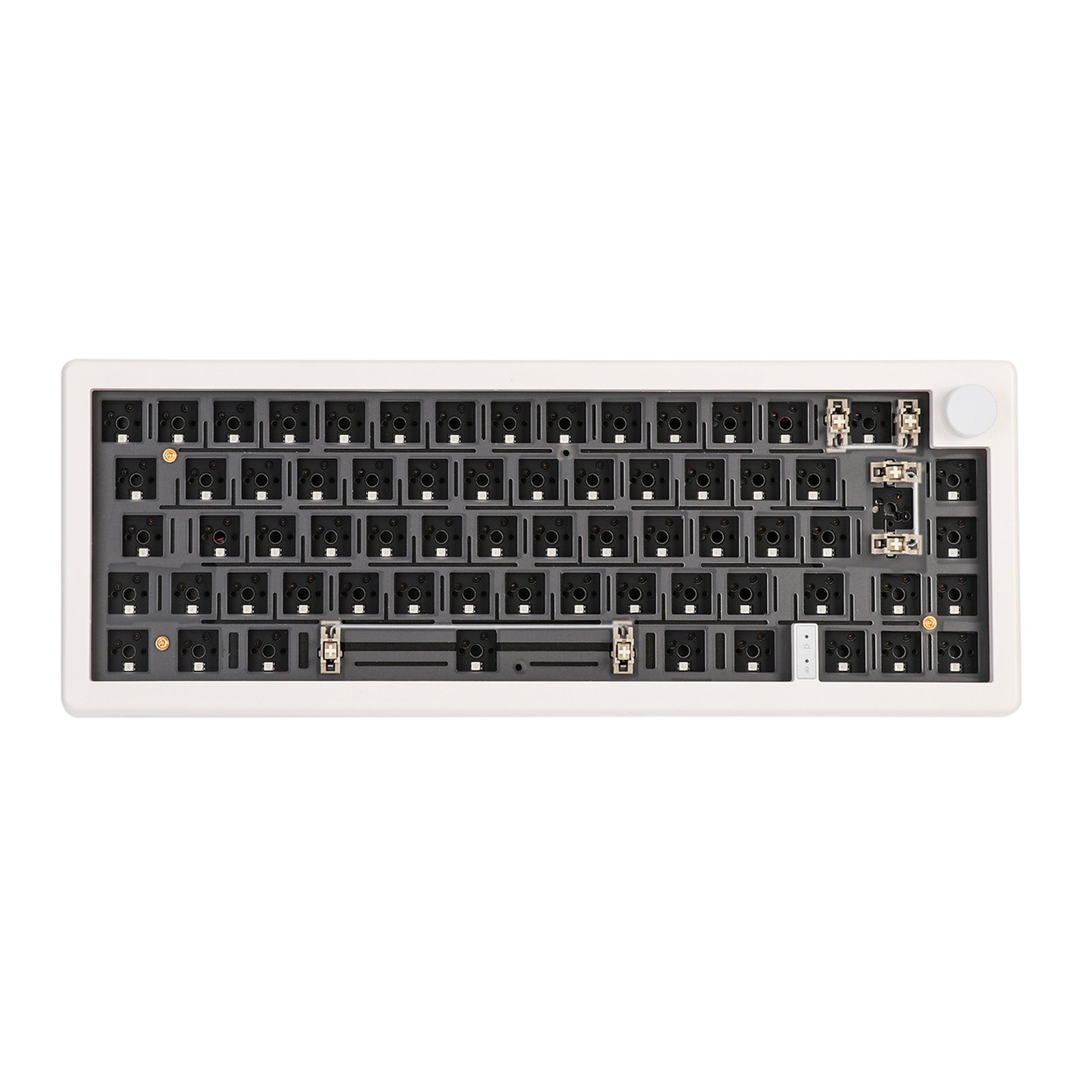

65% Gaming DIY Kit & VIA Programming

EK68 VIA is an extremely powerful 65% keyboard Kit that supports VIA programming. While being compact, it still retains all of essential keys for daily work and game along with cursor keys. Furthermore, user can change the keys by VIA without re-flashing firmware. VIA allows you to easily create macros and remap your keyboard layout to quickly access any function in any program. The changes can remain in keyboard even when keyboard is unplugged and re-plugged.

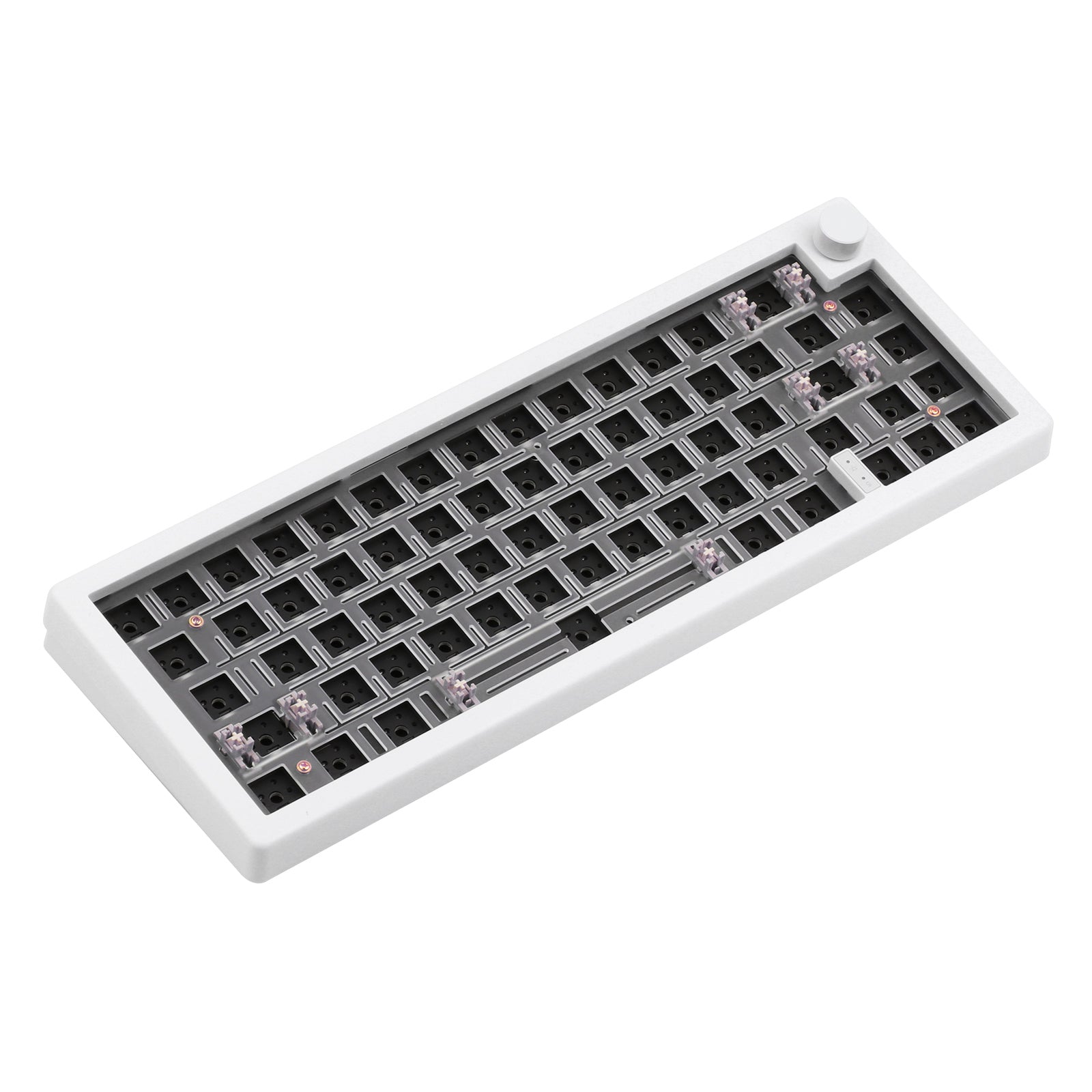

Gasket Mount - The Desired Structure

The EK68 VIA is designed as a gasket-mounted keyboard kit. The typing tactile and auditory experience is further enriched in EK68 VIA with the use of Poron foams. Poron foam in our construction dampens reverberations within housing, effectively dampening resonance and allowing a cleaner sound profile. Included PC plate can best fit gasket mount compared to other more flexible plates such as steel or FR4. This adds to stability of the kit over long gaming sessions.

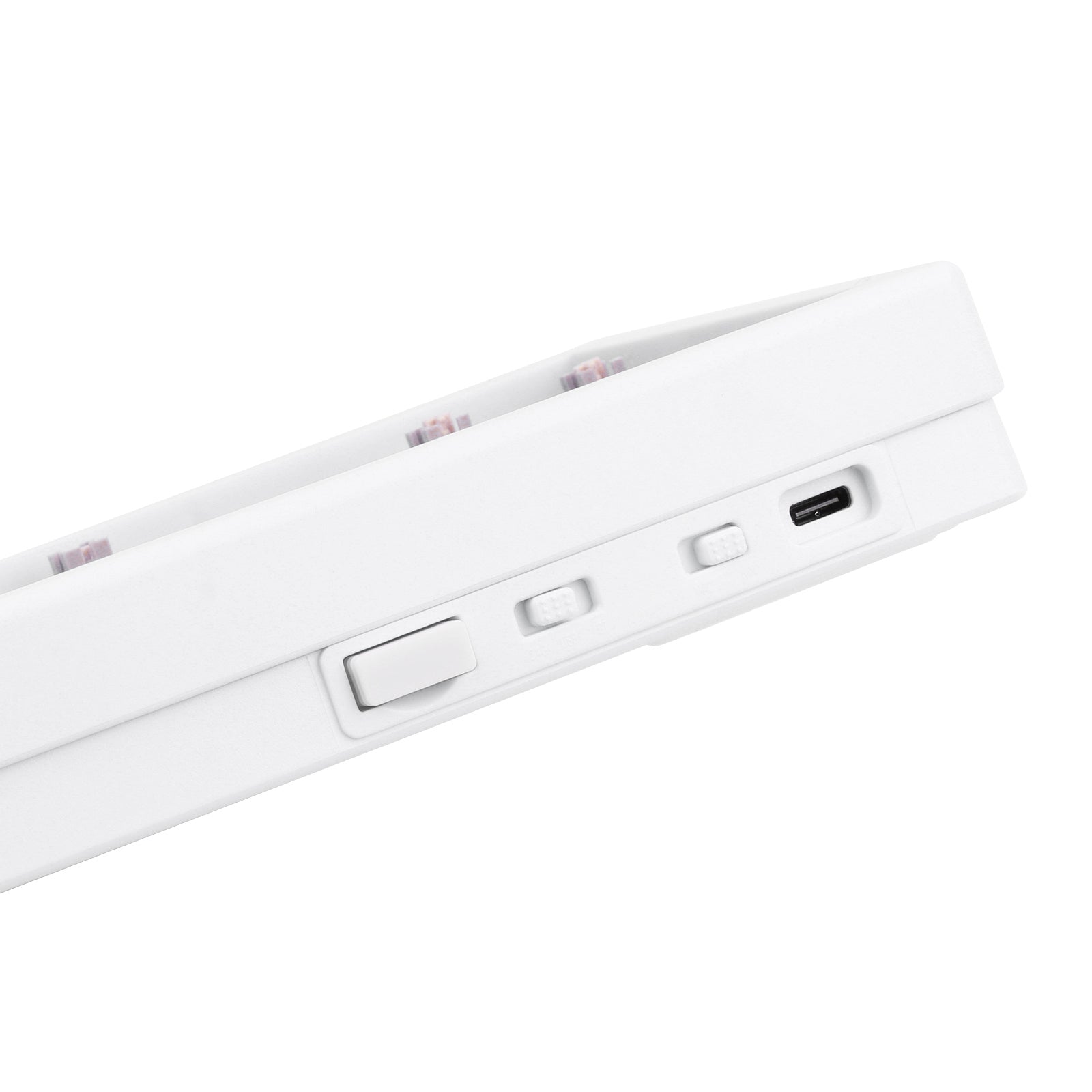

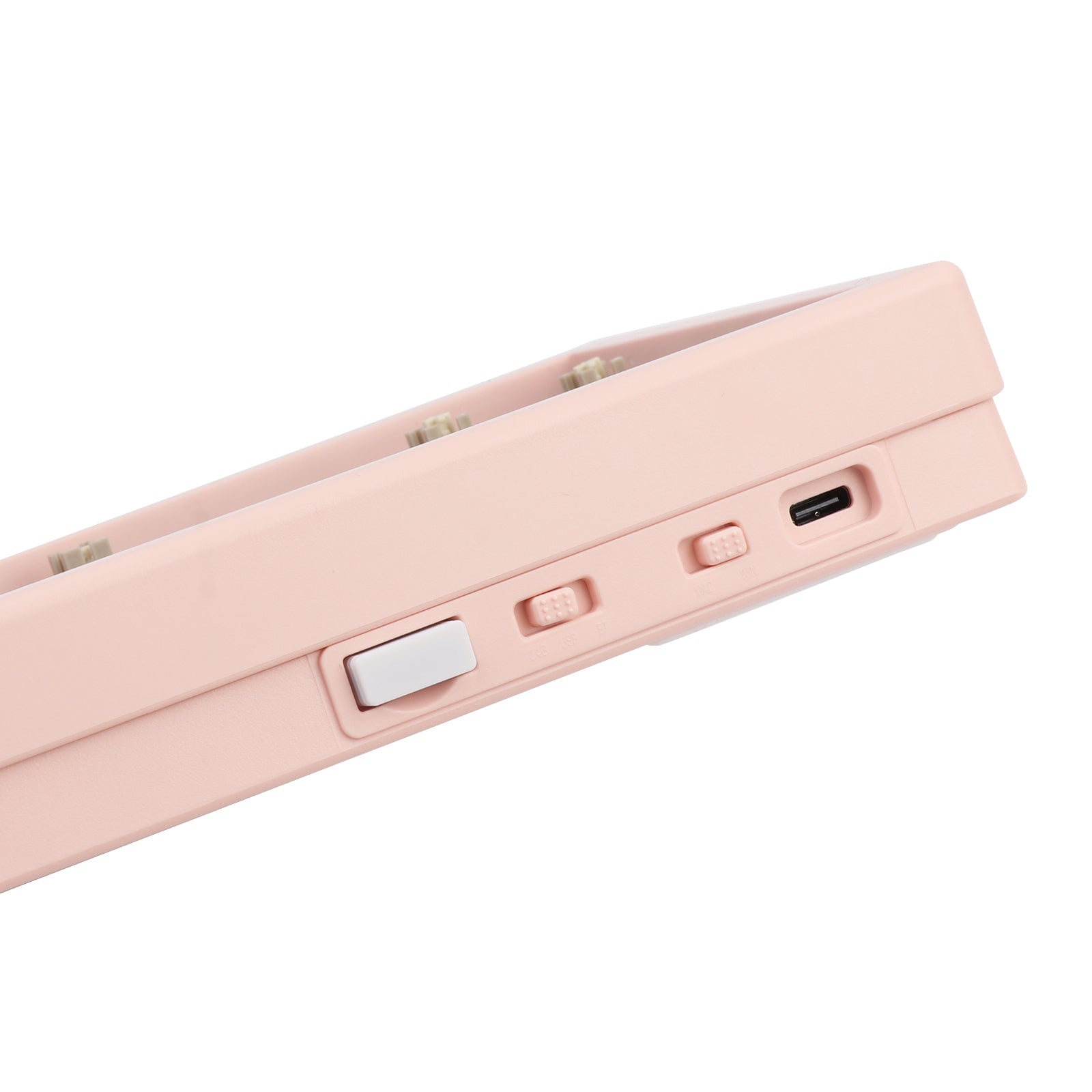

Three Modes of Connectivity: Bluetooth 5.0 & 2.4GHz & Type-C Cable

Equipped with a 3000mAh large capacity battery, this keyboard Kit supports wireless and wired connections. By the wireless option, either Bluetooth (up to 5.0) or 2.4GHz can be chosen. By the wired mode, a USB-C cable is included for fast and stable transmission. Seamless switching between every device is like a piece of cake.

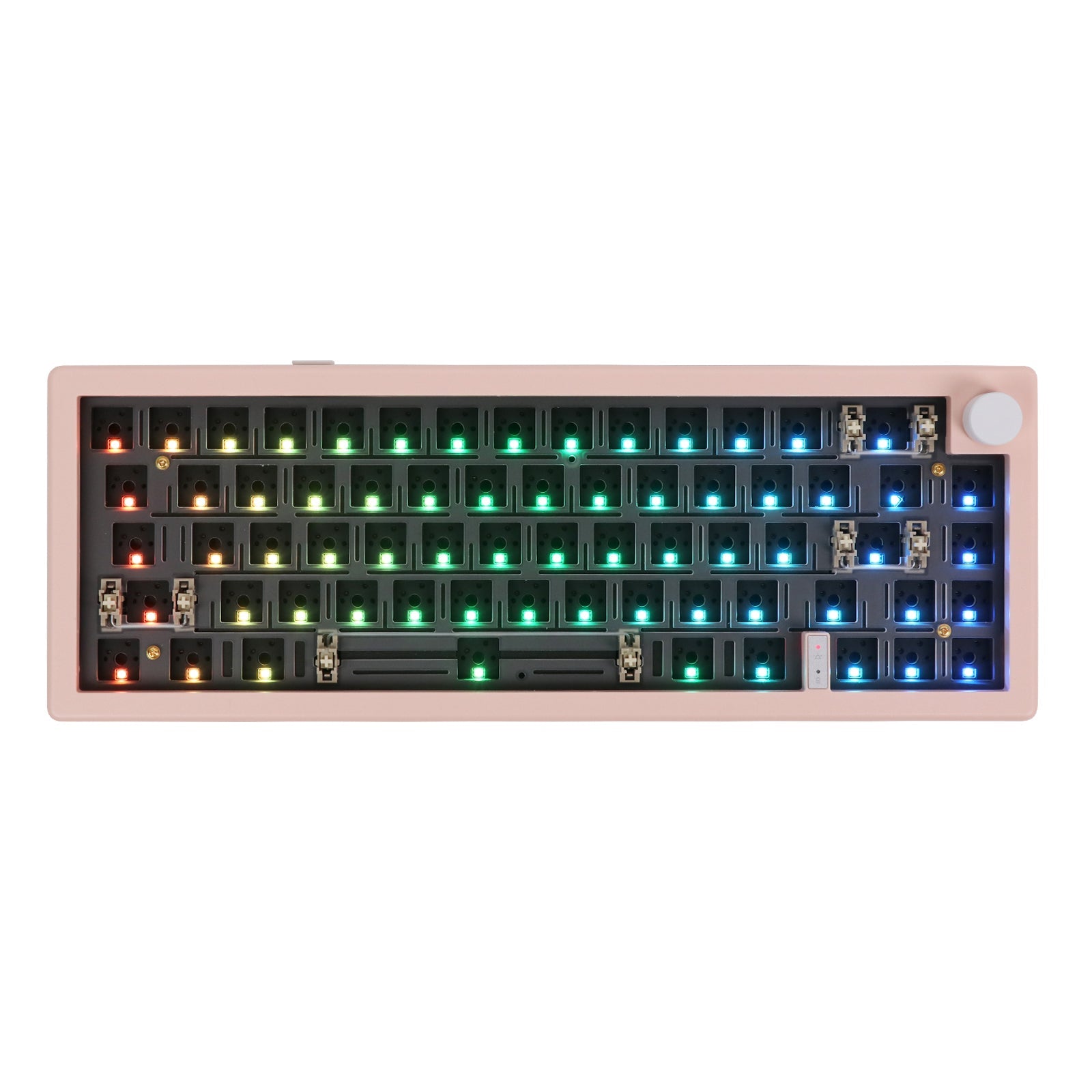

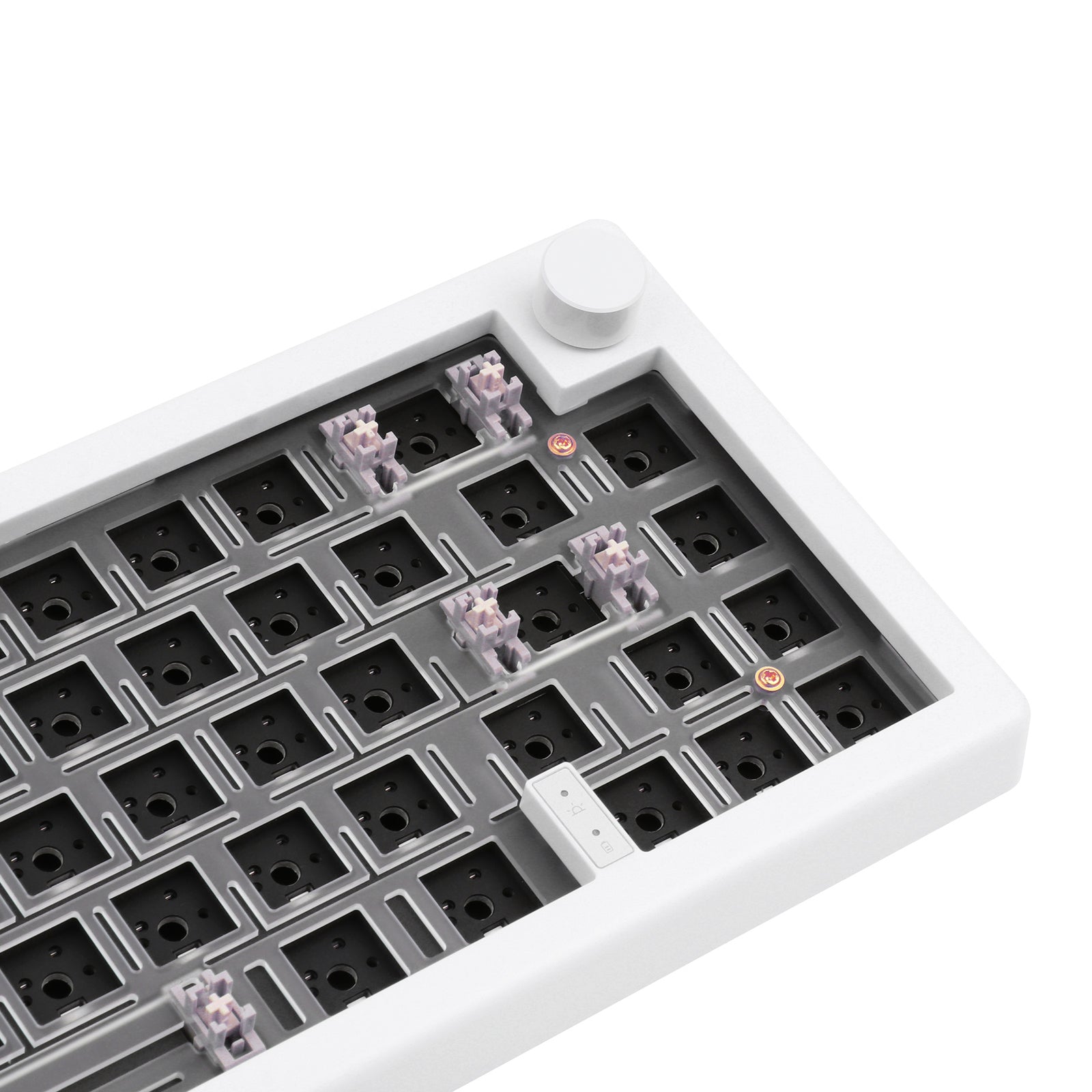

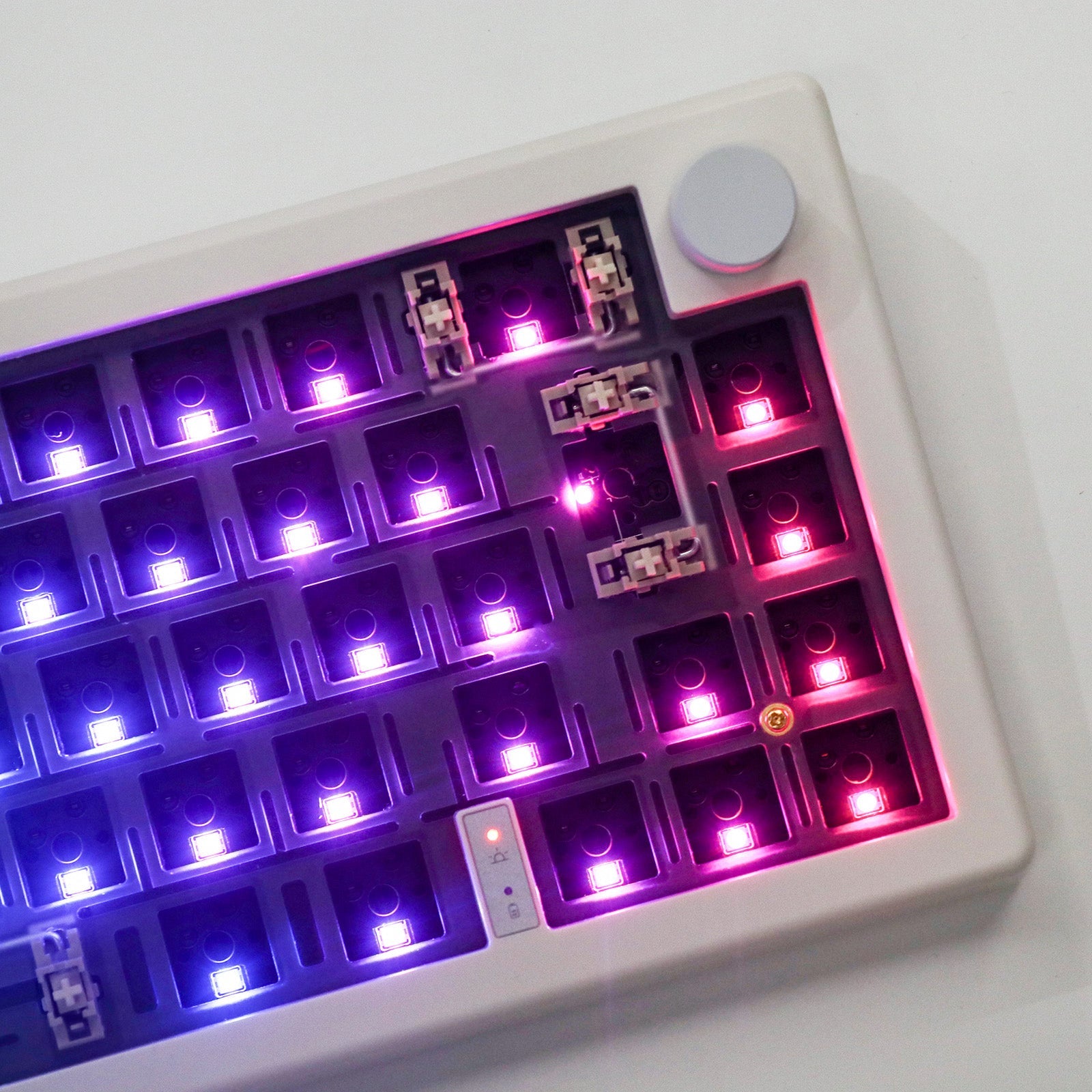

Hot Swappable & South-facing LEDs

EPOMAKER EK68 VIA is equipped with hot swappable PCB to ensure free replacement or change of switches. You don’t need to solder it. It is compatible with most 3 pin and 5 pin mechanical switches, such as Cherry, Gateron, Otemu, Kailh and other MX switches and its clones. The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. It also avoids the interference when installed with the popular cherry profile keycaps.

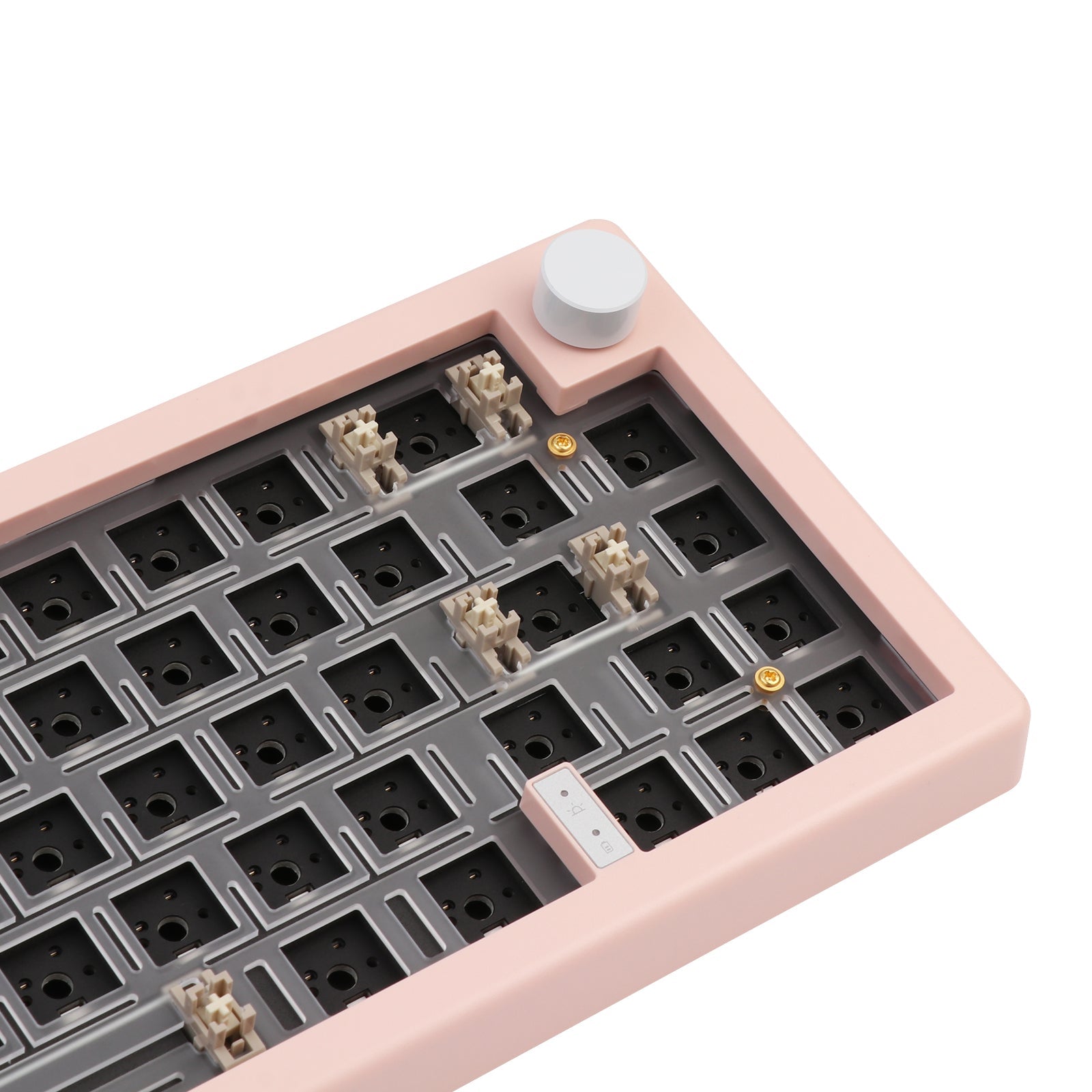

Rotary Knob for Media Control & Refinedly Tuned Stabilizers

EK68 VIA is designed with a knob to control volume. By simply rotating left or right and pressing, the kit can turn the system volume up, down, or completely muted. The stabilizers that come with this DIY kit are refinedly tuned to prevent rattling on large keys like spacebars and modifiers. Therefore, EK68 VIA DIY kit offers a premium stable typing experience.


Technical Specifications

Model
EPOMAKER EK68 VIA KIT
LAYOUT
65% Layout
Connectivity
USB-C wired/Wireless 2.4Ghz/Bluetooth 3.0/Bluetooth 5.0
Structure
Gasket-mounted
Battery capacity
3000mAh
Stabilizer type
Plate-mounted
Inside the box
  • 1*Keyboard Customized Kit
  • 1*Type-C Cable
  • 1*Keycap Puller
  • 1*2.4G receiver
